MasterFit Pro® Motors

Motor



Features:

  • All Purpose, Multi-Rating Capacitor in Every Box
  • Class B Insulation for all Blower Motors
  • Class F Insulation for all Condenser Fan Motors
  • Energy Efficient
  • Ball and Sleeve Bearing
  • Permanent Split Capacitor
  • Mounts by Belly Band, Thru Bolts or Shell Holes

Benefits:

  • MasterFit Pro® motors have enhanced features and include an all-purpose, multi-rating capacitor packed in every box. MasterFit APC capacitors cover 5, 7.5, 10, 12.5, and 15 microfarads (mfd) to make this the only capacitor needed for a busy contractor's job.




Motors
Motors

Built to be Your Truck Stock Motor


MasterFit Pro® motors replace hundreds of the most popular 48-frame PSC condenser fan and indoor blower motors currently installed.

With versatile mounting options and multi-mounting capability, MasterFit Pro® motors replace multiple styles of OEM motors.

  • OEM mounting holes, with screws supplied
  • Adjustable extended thru-bolts
  • Belly band

What is the Value of Having the Part You Need on the Truck?

  • Reduce unnecessary trips to the distributor and long drive times to get a replacement
  • Eliminate temporary motor substitutions
  • Get the job done the same day with the right part
  • Reduce truck stocking costs
  • Get more jobs done in the same day

Built to Last

  • Condenser fan motors rated 70°C
  • Durable ball bearings or dependable all-angle sleeve bearings
  • Water resistant rubber grommet at lead opening on condenser fan motors
  • Water resistant reversing plugs on all MasterFit Pro® motors





Direct Drive Fan & Blower Motors

Ambient 40 deg. C, Open Dripproof



Stock Number   Hp Capacitor 370V  Speeds to Use AMPS   RPM Volts   Bearings  Lead Lengths  A Dim Shaft Length   Cross Ref
 FD6002A  1/3  7.5 mfd  All  2.1  825  208-230  Sleeve  36  5.24  1/2 x 3.5  5469
 1/4  Med-Hi, Med-Lo, Lo   1.7
 1/5  Med-Lo, Lo   1.0
 1/6  Lo  0.9
 FDL6001A  1/2  10 mfd  All  7.0  1075  115  Sleeve  4.86


 1/2 x 5  5460
 1/3  5 mfd 7.5  All  6.7
 1/4  Med-Hi, Med-Lo, Lo  4.4
 1/5  Med-Lo, Lo   3.2
 1/6  Lo  2.4
 FD6000A  1/2  10 mfd  All  3.9  1075  208-230  Sleeve  5461
 1/3  5 mfd 7.5  All  3.6
 1/4  Med-Hi, Med-Lo, Lo  2.5
 1/5  Med-Lo, Lo   1.8
 1/6  Lo  1.3
 FDL6002A  3/4  10 mfd  All  9.1  1075  115  Ball  5470
 1/2  10 mfd  All  6.8
 1/3  5 mfd 7.5  All  5.5
 1/4  Med-Hi, Med-Lo, Lo  3.0
 1/5  Med-Lo, Lo   2.3
 FD6001A  3/4  10 mfd  All  4.0  1075  208-230  Ball  5471
 1/2  10 mfd
 All  3.6
 1/3   5 mfd 7.5  All  3.0
 1/4  Med-Hi, Med-Lo, Lo  2.3
 1/5  Med-Lo, Lo   2.0
 7FD6000A  1/2  10 mfd  All  3.3  1075  277  Sleeve  N/A
 1/3   5 mfd 7.5  All  2.3
 1/4  Med-Hi, Med-Lo, Lo  1.7
 1/5  Med-Lo, Lo   1.3
 1/6  Lo  1.0
  7FD6001A  3/4  10 mfd  All  3.6  1075  277  Ball  N/A
 1/2  10 mfd  All  2.3
 1/3   5 mfd 7.5  All  1.7
 1/4  Med-Hi, Med-Lo, Lo  1.3
 1/5  Med-Lo, Lo   1.0



Condenser Fan Motors

Ambient 70 deg C, Totally Enclosed



Stock Number   Hp Capacitor 370V 208V   Capacitor 370V 230V  Speeds to Use AMPS   RPM Volts   Bearings  Lead Lengths  A Dim Shaft Length   Cross Ref
 FE6001F  1/3  10 mfd  7.5  High  1.9  825  208-230  Ball  48  5.24  1/2 x 6.5  5464
 1/4  High  1.5  5464H
 1/5  Low  1.2
 1/6  Low  1.0
 FE6003F  1/2  12.5 mfd  10  High  2.4  825  5.74  N/A
 1/3  High  1.7
 1/4  Low  1.4
 1/5  Low  1.1
 FE6000F  1/3  7.5 mfd  5  High  2.6  1075  4.74  5462
 1/4  High  2.5  5462H
 1/5  Low  2.0
 1/6  Low  1.8
 FE6002F  1/2  12.5 mfd  10  High  3.9  1075  5.36  5465
 1/3  High  2.2  5465H
 1/4  Low  1.6
 1/5  Low  1.3
 FE6004F  3/4  15 mfd  12.5  High  5.8  1075  5.99  5482H
 1/2  High  3.9
 1/3  Low  2.5
 1/4  Low  1.8

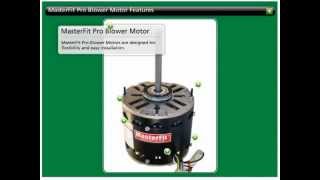

Century® MasterFit Pro® Motors

This video describes the features and benefits of MasterFit Pro condenser fan and blower motors and explains the MasterFit Pro advantage to your contractor customers.

Simplify Your Truck with Century® MasterFit Pro® Motors

Century® MasterFit Pro® motors simplify your truck stock, your installation and your schedule.

Century® MasterFit Pro® Motors - Simplify Your Installation

See for yourself how easy it is to replace a PSC indoor blower motor with a MasterFit Pro® motor.
