4-in-1® PSC Condenser Fan Motors

4in1



4-in-1® motors replace hundreds of the most popular 48-frame residential and commercial condenser fan motors currently installed - with "one simple connection." Each Permanent Split Capacitor (PSC) motor is designed to replace four different horsepower ratings with just one simple line connection. No need to change capacitors or select different speed taps.





Features:



  • UL/CSA approved Class B or Class F insulation
  • Energy-efficient PSC design
  • Double-sealed ball bearings or all-angle sleeve bearings
  • Lead length 36" to 48"
  • Continuous duty, air-over
  • 60°C, 70°C, or 80°C maximum ambient temperature

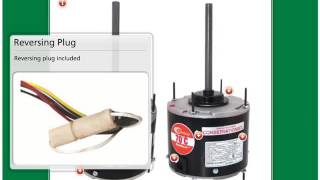

  • Reversing connector or water-resistant reversing plug
  • Mounts by belly band, thru-bolts or OEM mounting holes
  • Fully enclosed



Benefits:

What if... you could replace 16 motors with just 2?

2 4-in-1 motors replace 16 PSC condenser fan motors. Each Century® 4-in-1 motor is designed to replace 4 horsepower ratings.



Century



Applications:



  • Residential and light commercial HVAC condenser fans
  • Refrigeration condenser fans








Built to be Your Truck Stock Motor

  • The line of 4-in-1® motors replaces hundreds of the most popular 48-frame condenser fan motors currently installed - with "one simple connection“
  • Versatile mounting options; multi-mounting capability; replaces multiple styles of OEM motors; all angle mount
    • OEM mounting holes; with screws supplied
    • Adjustable extended thru-bolts
    • Belly band
  • Simple three-wire connection (L1, L2, & Capacitor) similar to original motor
  • One motor replaces motors in each of 4 horsepower ratings with the same electrical connection (eliminates having to select various speeds or change capacitor sizes)



What is the Value of having the Part You Need on the Truck?

  • Reduce unnecessary trips to the distributor and long drive times to get a replacement
  • Eliminate temporary motor substitutions
  • Get the job done the same day with the right part
  • Reduce truck stocking costs
  • Get more jobs done in the same day

Built to Last

  • Available in 70°C design and select models available in 80°C design
  • Durable ball bearings or dependable all-angle sleeve bearings
  • Water resistant rubber grommet at lead opening
  • Water resistant reversing plug on 70°C and 80°C motors





Century® 4-in-1® Motors

The new Century® expanded line of 4-in-1® motors replace hundreds of the most popular 1/2 - 1/15 HP, 208-230 and 460-volt, 825 or 1075 rpm residential and commercial condenser fan motors.

Simplify Your Truck with Century® 4-in-1® Motors

Century® 4-in-1® motors simplify your truck stock, your installation and your schedule.

Simplify Your Truck with Century® Motors

Century® motors simplify your truck stock, your installation and your schedule. Replace 32 common HVAC indoor blower motor and outdoor fan motor ratings with just 6 motors on your truck.

heatmaster
heatmaster
heatmaster



4-IN-1® MULTI-HORSEPOWER MOTORS

Class B Insulation – 60˚C (140˚F) Max Ambient – Sleeve Bearing



 Stock Number  HP  Volts  Approx Amps  Approx Rpm  Speeds  Capacitor  Bearings   Shell Length  Shaft  Rotation  Wt.
 ORM5488  1/3  208-230  2.1  825  1  7.5MFD/370V  Sleeve  4.86  1/2"x 6-1/2"  Reversible  15.8
   1/4    1.4  865
   1/6    1.2  875
   1/8    1.1  882
 ORM5458  1/3  208-230  2.0  1075  1  7.5MFD/370V  Sleeve  4.00  1/2"x 6-1/2"  Reversible  11.8
   1/4    1.3  1140
   1/5    1.1  1155
   1/6    1.0  1160





Class B Insulation – 60˚C (140˚F) Max Ambient – Ball Bearing

 Stock Number  HP  Volts  Approx Amps  Approx Rpm  Speeds  Capacitor  Bearings   Shell Length  Shaft  Rotation  Wt.
 ORM5488B  1/3  208-230  2.1  825  1  7.5MFD/370V  Ball  4.86  1/2"x 6-1/2"  Reversible  15.8
   1/4    1.4  865
   1/6    1.2  875
   1/8    1.1  882
 ORM5458B  1/3  208-230  2.0  1075  1  7.5MFD/370V  Ball  4.00  1/2"x 6-1/2"  Reversible  11.8
   1/4    1.3  1140
   1/5    1.1  1155
   1/6    1.0  1160



4-IN-1® HEATMASTER® MOTORS

Class F Insulation – 70˚C (158˚F) Max Ambient – Sleeve Bearing



 Stock Number  HP  Volts  Approx Amps  Approx Rpm  Speeds  Capacitor  Bearings   Shell Length  Shaft  Rotation  Wt.
 ORM5484F  1/8  208-230  0.8  825  1  5MFD/370V  Sleeve  4.24  1/2"x 6-1/2"  Reversible  11.8
   1/10    0.7  850
   1/12    0.6  865
   1/15    0.5  875
 ORM5488F  1/3  208-230  2.1  825  1  7.5MFD/370V  Sleeve  4.84  1/2"x 6-1/2"  Reversible  15.8
   1/4    1.4  865
   1/6    1.2  875
   1/8    1.1  882
 ORM5454F  1/8  208-230  0.8  1075  1  5MFD/370V  Sleeve  3.99  1/2"x 6-1/2"  Reversible  10.6
   1/10    0.7  1125
   1/12    0.6  1135
   1/15    0.5  1155
 ORM5458F  1/3  208-230  2.0  1075  1  7.5MFD/370V  Sleeve  4.00  1/2"x 6-1/2"  Reversible  11.6
   1/4    1.3  1140
   1/5    1.1  1155
   1/6    1.0  1160





Class F Insulation – 70˚C (158˚F) Max Ambient – Double Sealed Ball Bearing



 Stock Number  HP  Volts  Approx Amps  Approx Rpm  Speeds  Capacitor  Bearings   Shell Length  Shaft  Rotation  Wt.
 ORM5484BF   1/8  208-230  0.8  825  1  5MFD/370V  Ball  4.24  1/2"x 6-1/2"  Reversible  11.8
   1/10    0.7  850
   1/12    0.6  865
   1/15    0.5  875
 ORM5488BF  1/3  208-230  2.1  825  1  7.5MFD/370V  Ball  4.86  1/2"x 6-1/2"  Reversible  15.8
   1/4    1.4  865
   1/6    1.2  875
   1/8    1.1  882
 ORM5489BF  1/2  208-230  2.5  825  1  10MFD/370V  Ball  5.61  1/2"x 6-1/2"  Reversible  18.0
   1/3    1.8  850
   1/4    1.5  865
   1/5    1.2  875
 ORM4688BF  1/3  460  1.0  825  1  7.5MFD/370V  Ball  5.11  1/2"x 6-1/2"  Reversible  15.4
   1/4    0.7  865
   1/6    0.6  875
   1/8    0.5  880
 ORM5454BF  1/8  208-230  0.8  1075  1  5MFD/370V  Ball  3.99  1/2"x 6-1/2"  Reversible  10.6
   1/10    0.7  1125
   1/12    0.6  1135
   1/15    0.5  1155
 ORM5458BF  1/3  208-230  2.0  1075  1  7.5MFD/370V  Ball  4.00  1/2"x 6-1/2"  Reversible  11.8
   1/4    1.3  1140
   1/5    1.1  1155
   1/6    1.0  1160
 ORM5459BF  1/2  208-230  3.6  1075  1  10MFD/370V  Ball  5.36  1/2"x 6-1/2"  Reversible  17.0
   1/3    2.6  1135
   1/4    2.2  1155
   1/5    2.1  1165
 ORM4658BF  1/3  460  1.2  1075  1  7.5MFD/370V  Ball 4.86  1/2"x 6-1/2"  Reversible  13.4
   1/4    0.8  1155
   1/5    0.7  1160
   1/6    0.6  1165
 ORM4659BF  1/2  460  1.5  1075  1  10MFD/370V  Ball  5.61  1/2"x 6-1/2"  Reversible  19.0
   1/3    1.0  1135
   1/4    0.8  1155
   1/5    0.7  1165





4-IN-1® HEATMASTER® ULTRA MOTORS

Class F Insulation – 80˚C (176˚F) Max Ambient – Double Sealed Ball Bearing



 Stock Number  HP  Volts  Approx Amps  Approx Rpm  Speeds  Capacitor  Bearings   Shell Length  Shaft  Rotation  Wt.
 ORM5488BU  1/3  208-230  1.8  825  1  7.5MFD/370V  Ball  4.86"  1/2"x 6-1/2"  Reversible  15.8
   1/4    1.4  865
   1/6    1.2  875
   1/8    1.1  882
 ORM4688BU  1/3  460  1.0  825  1  7.5MFD/370V  Ball  5.24"  1/2"x 6-1/2"  Reversible  17.0
   1/4    0.7  865
   1/6    0.6  875
   1/8    0.5  880
 ORM5454BU  1/8  208-230  0.8  1075  1  5MFD/370V  Ball  3.99"  1/2"x 6-1/2"  Reversible  11.0
   1/10    0.7  1125
   1/12    0.6  1135
   1/15    0.5  1155
 ORM5458BU  1/3  208-230  1.9  1075  1  7.5MFD/370V  Ball  4.11"  1/2"x 6-1/2"  Reversible  11.8
   1/4    1.3  1140
   1/6    1.1  1155
   1/8    1.0  1160
